Description
Manufactured in accordance with BS EN13155: 2003 + A2: 2009 – Cranes – Safety – Non Fixed Load Lifting Attachments.
The William Hackett WH-PT Corrosion Protected Push Trolleys meet and exceed the requirements of the following international standards: British Standard BS EN 13157:2004 + AI:2009.

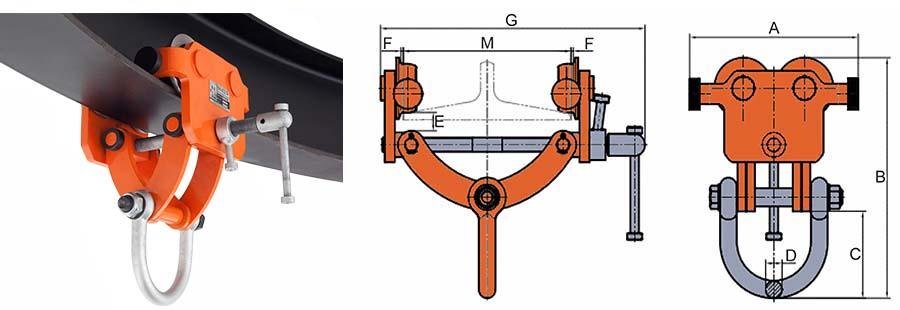

The WH-AT Adjustable Push Trolley features a light weight robust construction, allowing quick and effective installation onto various beams and girders.
The adjustable trolley is fitted with wheel guard anti-drop plates and precision ball bearing wheels allowing easy movement along the beam. It adapts to the beam width by turning the adjustable bar and is fitted with a locking mechanism for ensuring secure clamping to the beam.
W.L.L. capacities of 2.0 tonnes, 3.2 tonnes and 6.0 tonnes are available and the trolleys are designed to accommodate a range of beam widths.

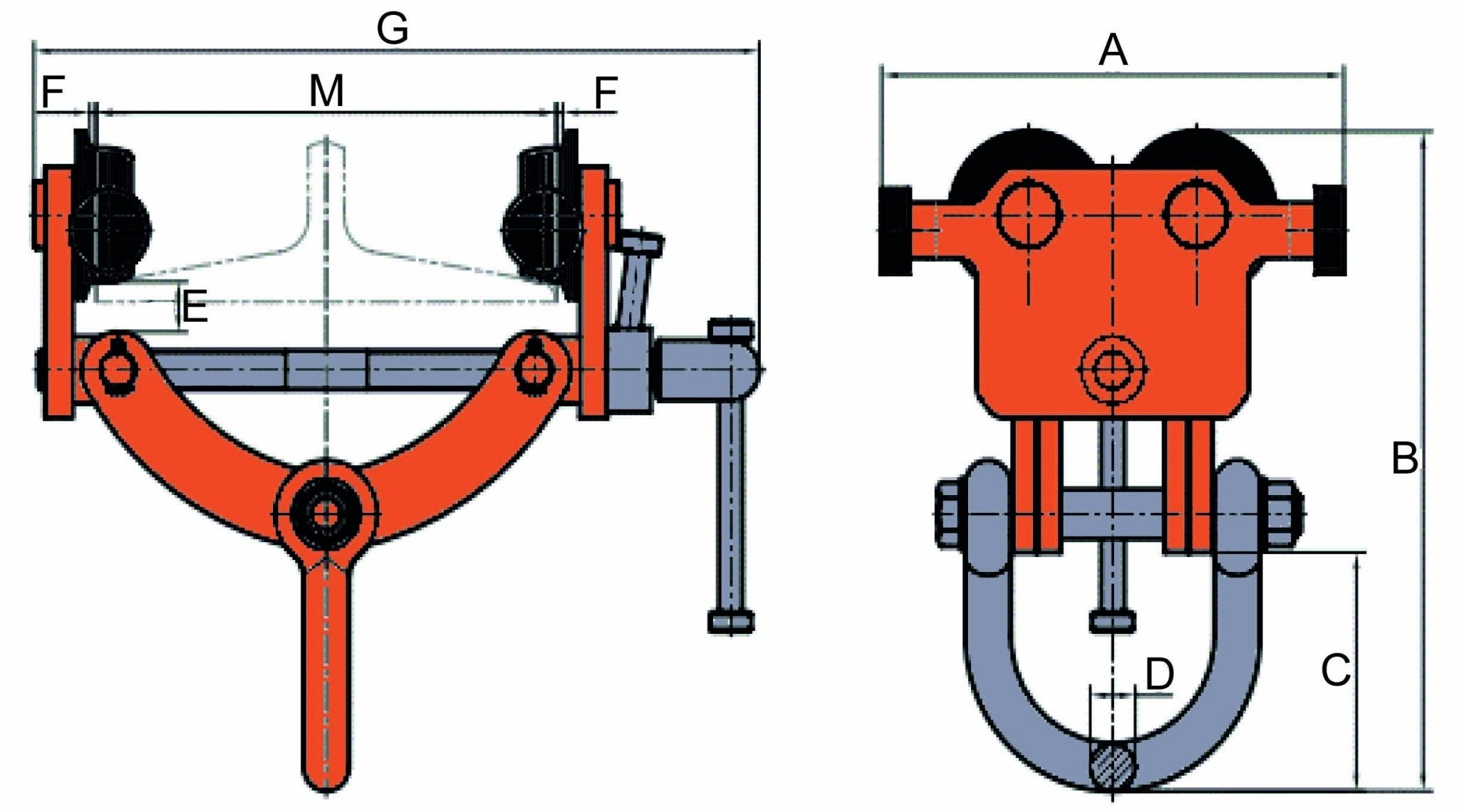

| Part Code |
WLL |
Min. Radius of Curve |
A |
B |
C |
D |
E |
F |
G |
Beam Width |
Mass |
| 014.200 | 2.00 | 0.7 | 204 | 276-322 | 100 | 20 | 21 | 2.5 | 320 | 76-203 | 8.10 |
| 014.320 | 3.20 | 1.1 | 246 | 334-374 | 111 | 20 | 25 | 2.5 | 330 | 76-203 | 14.25 |
| 014.600 | 6.00 | 1.4 | 286 | 384-463 | 124 | 25 | 33 | 3.0 | 454 | 100-305 | 27.40 |
